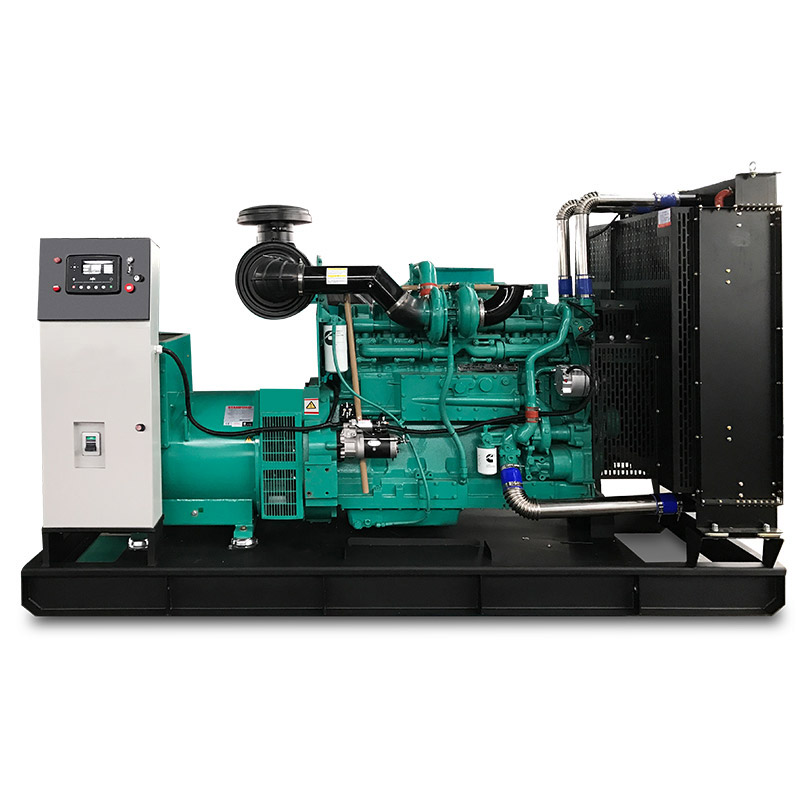

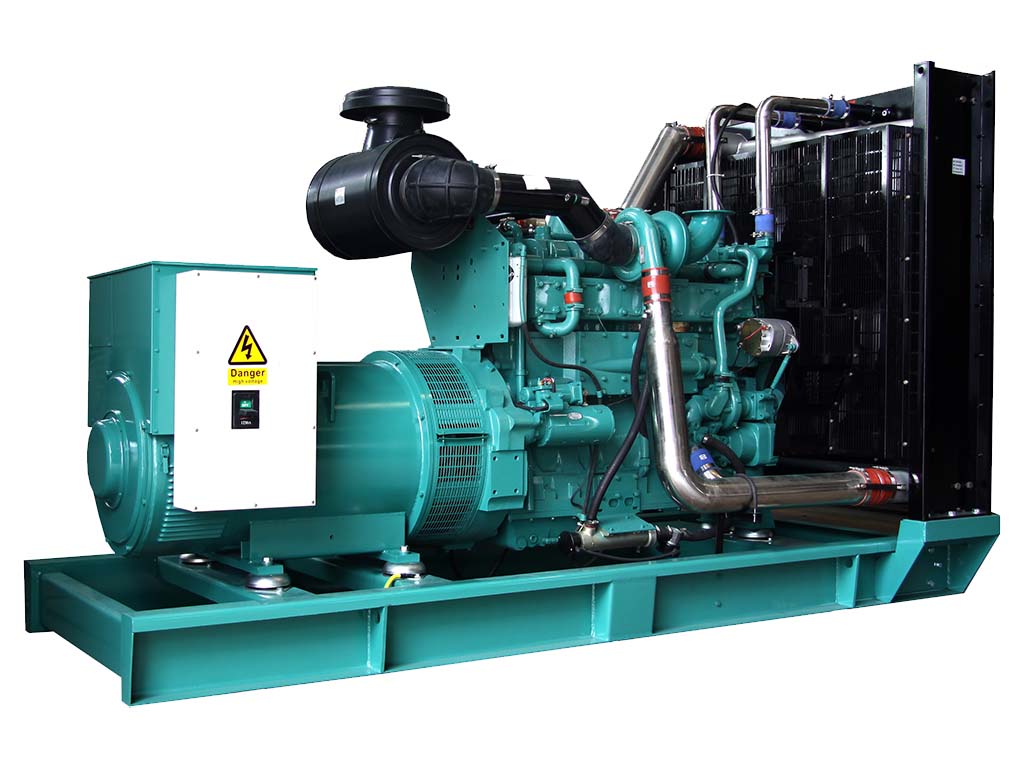

Cummins KTAA19-G5 Generator Diesel Engine Assembly

Displacement

19L

Bore*Stroke(mm)

159 * 159

Rated Speed:

1500 rpm

Rated Power:

502 kW/673HP

Turbocharged/Charge Air Cooled

Fuel Consumption:

113 L/Kw.h

Packing Size(L*W*H):

1500 * 1000 * 1400 mm

Gross Weight:

2000 KG

Certification

Tier III

Aspiration

Turbocharged/Aftercooled

Fuel System

Cummins PT Pump, Direct Injection

Compression Radio

13.5:1

Electrical System (Starter Motor/Alternator)

24V

Lowest Starting Temp. (without/without auxiliary system)

-12℃

Engine Cooling Fluid Volume

20.8 L

Cooling Method

Water Cooled

Rated Power/Rated Speed

502 kW/673HP@ 1500 rpm

Max. Power/Speed

555 kW/744HP@ 1500 rpm

Fuel Consumption

113 L/Kw.h

Packing Size(L*W*H):

1500 * 1000 * 1400 mm

Gross Weight:

2000 KG
