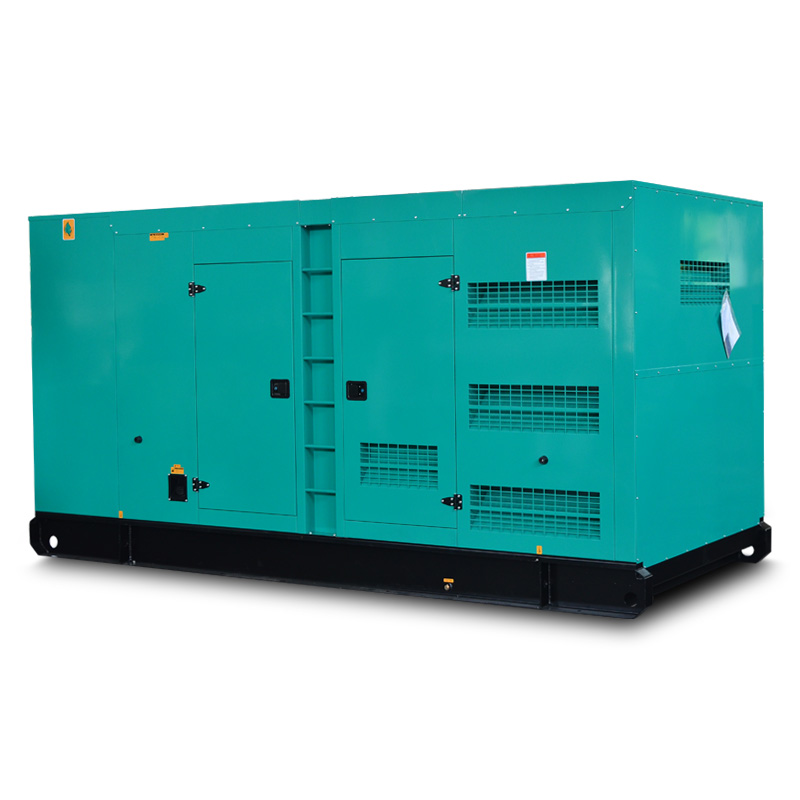

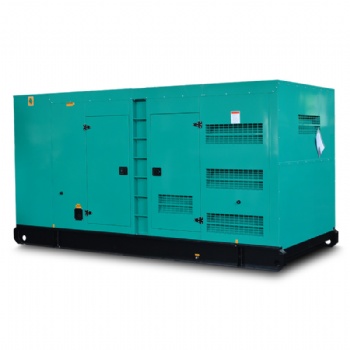

Cummins KTA19-G2 Generator Diesel Engine Assembly

Displacement

19L

Bore*Stroke(mm)

159 * 159

Rated Speed:

1500 rpm

Rated Power:

336 kW/450HP

Max. Torque/Speed:

1703/1896 N.m @ 1500 rpm

Aspiration Method:

Turbocharged/Aftercooled

Fuel Consumption:

83 L/Kw.h

Packing Size(L*W*H):

1500 * 1000 * 1400 mm

Gross Weight:

2100 KG

Certification

Tier III

Aspiration

Turbocharged/Aftercooled

Fuel System

Cummins PT Pump, Direct Injection

Compression Radio

14.5:1

Electrical System (Starter Motor/Alternator)

24V/900A

Lowest Starting Temp. (without/without auxiliary system)

-12℃

Engine Cooling Fluid Volume

20.8 L

Cooling Method

Water Cooled

Rated Power/Rated Speed

336 kW/450HP@ 1500 rpm

Max. Torque/Speed

2184/2400 N.m @ 1500 rpm

Max. Power/Speed

369 kW/495HP @ 1500 rpm

Fuel Consumption

83 L/Kw.h

Packing Size(L*W*H):

1500 * 1000 * 1400 mm

Gross Weight:

2100 KG
