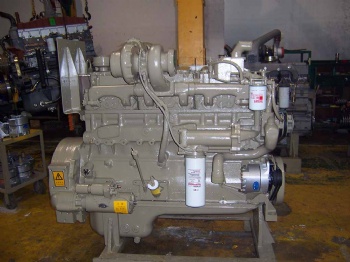

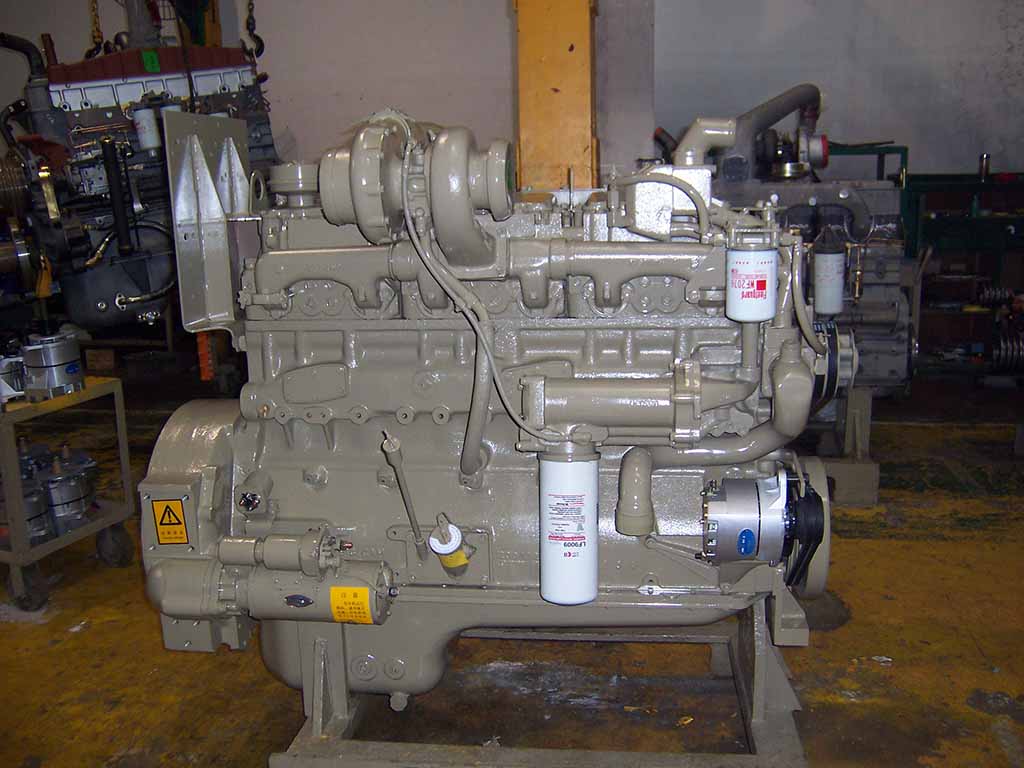

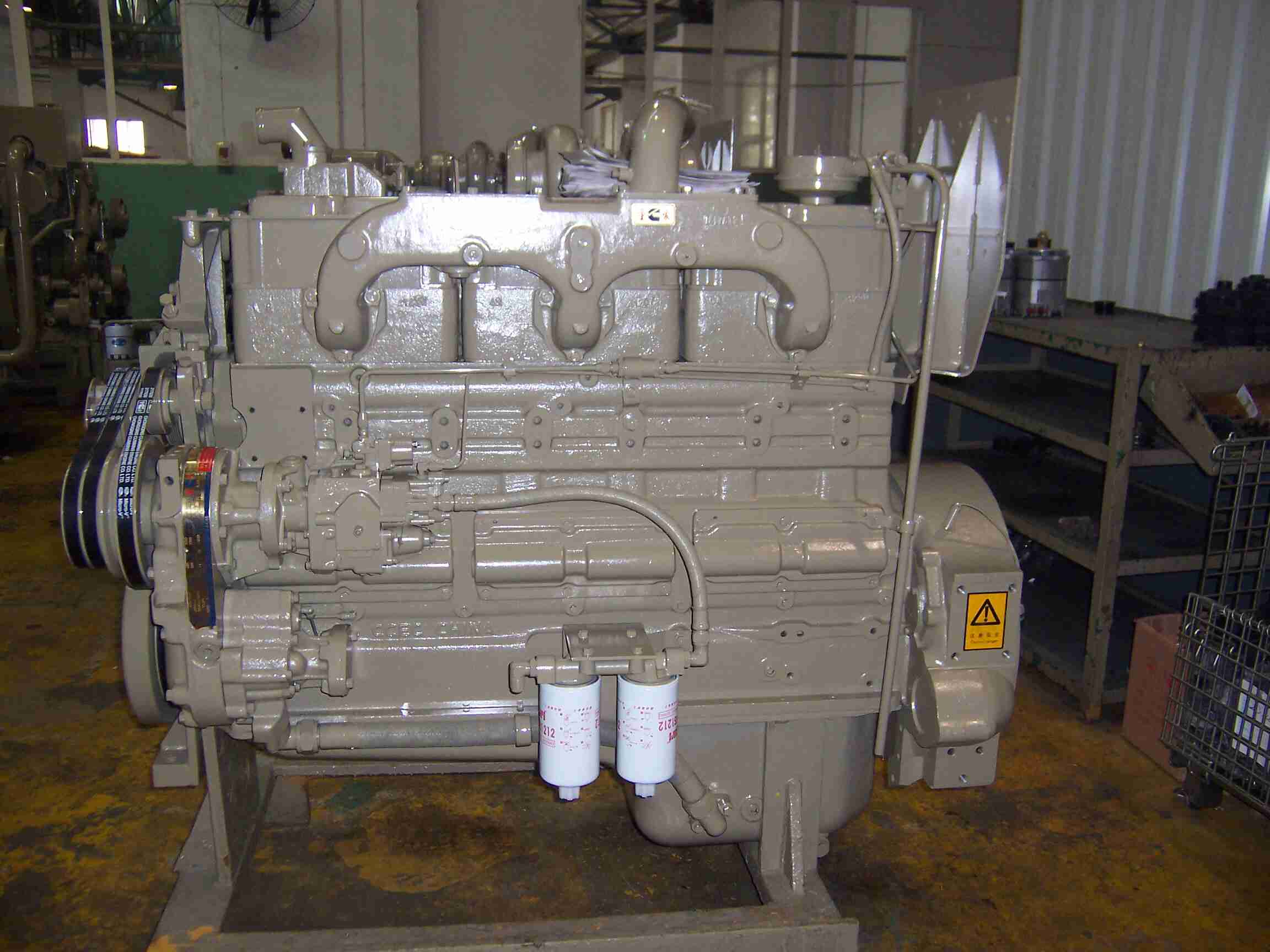

CumminsNTA855-G4 Generator Diesel Engine Assembly

Displacement

14L

Bore*Stroke(mm)

140 * 152

Rated Speed:

1500 rpm

Rated Power:

317 kW/425HP

Max. Torque/Speed:

1703/1896 N.m @ 1500 rpm

Aspiration Method:

Turbocharged/Aftercooled

Fuel Consumption:

72 L/Kw.h

Packing Size(L*W*H):

2200 * 1100 * 1700 mm

Gross Weight:

1600 KG

Certification

Tier III

Aspiration

Turbocharged

Fuel System

Cummins PT Pump, Direct Injection

Compression Radio

14:1

Electrical System (Starter Motor/Alternator)

24V/900A

Lowest Starting Temp. (without/without auxiliary system)

-12℃

Engine Cooling Fluid Volume

20.8 L

Cooling Method

Water Cooled

Rated Power/Rated Speed

 317 kW/425HP@ 1500 rpm

Max. Torque/Speed

1974/2184 N.m @ 1500 rpm

Max. Power/Speed

 351 kW/470HP @ 1500 rpm

Fuel Consumption

72 L/Kw.h

Packing Size(L*W*H):

2200 * 1100 * 1700 mm

Gross Weight:

1600 KG
