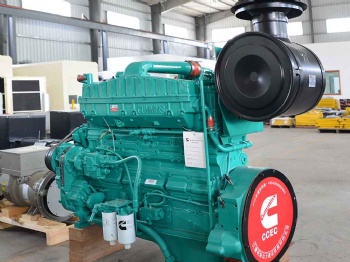

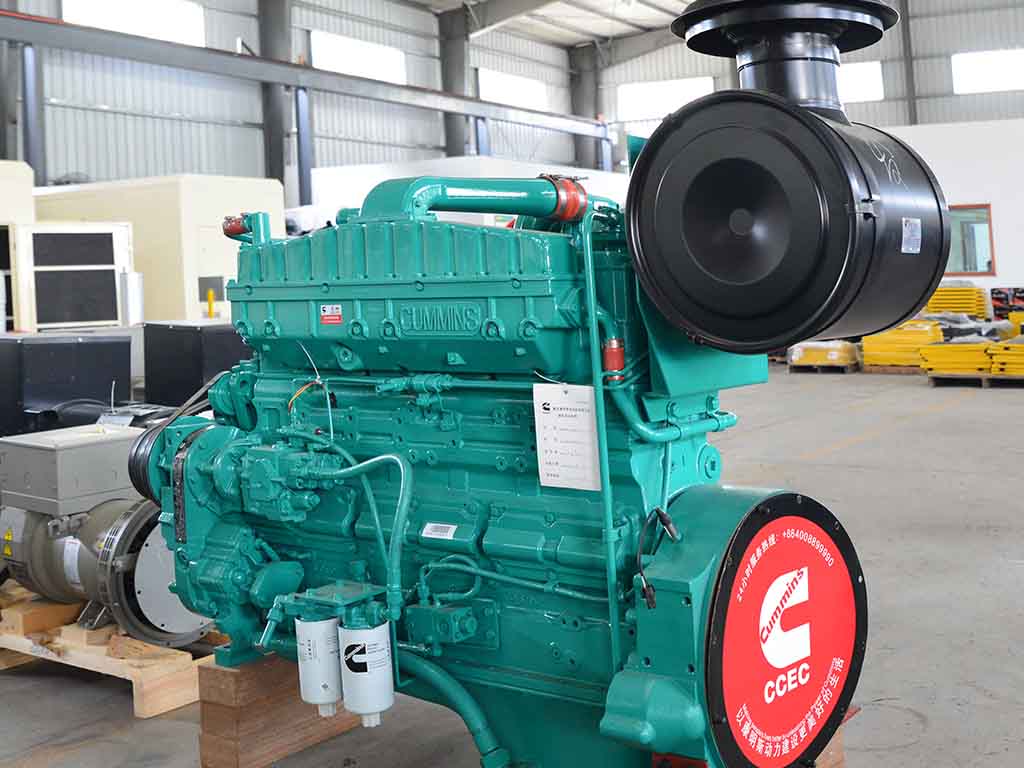

Cummins NTA855-G1B Generator Diesel Engine Assembly

Displacement

14L

Bore*Stroke(mm)

140 * 152

Rated Speed:

1500 rpm

Rated Power:

284 kW/380HP

Max. Torque/Speed:

1808/2044 N.m @ 1500 rpm

Aspiration Method:

Turbocharged/Aftercooled

Fuel Consumption:

68 L/Kw.h

Packing Size(L*W*H):

1980 * 900 * 1600 mm

Gross Weight:

1600 KG

Certification

Tier III

Aspiration

Turbocharged

Fuel System

Cummins PT Pump, Direct Injection

Compression Radio

14:1

Electrical System (Starter Motor/Alternator)

24V/900A

Lowest Starting Temp. (without/without auxiliary system)

-12℃

Engine Cooling Fluid Volume

20.8 L

Cooling Method

Water Cooled

Rated Power/Rated Speed

284 kW/380HP @ 1500 rpm

Max. Torque/Speed

1808/2044 N.m @ 1500 rpm

Max. Power/Speed

321 kW/430HP @ 1500 rpm

Fuel Consumption

68 L/Kw.h

Packing Size(L*W*H):

1980 * 900 * 1600 mm

Gross Weight:

1600 KG
