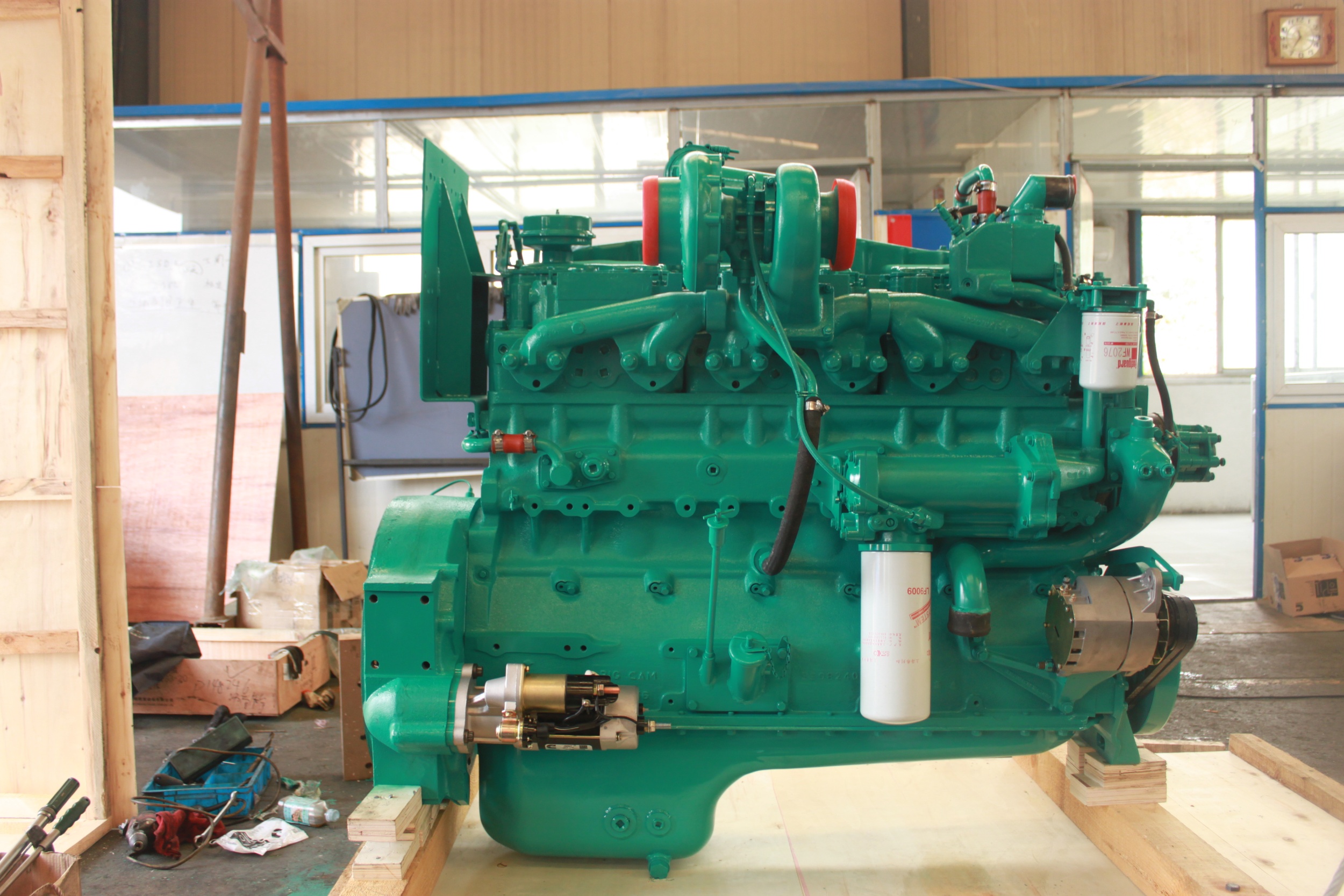

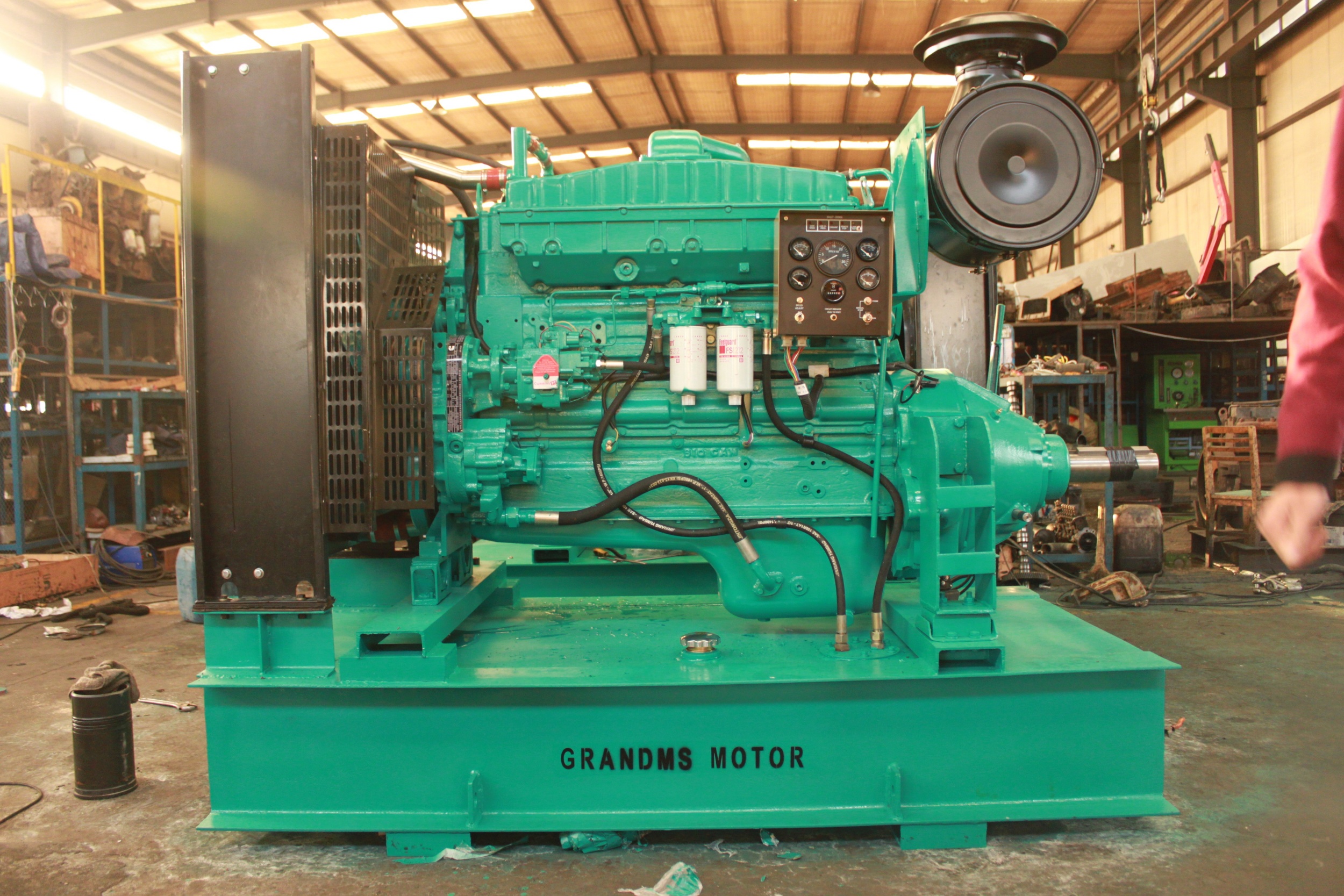

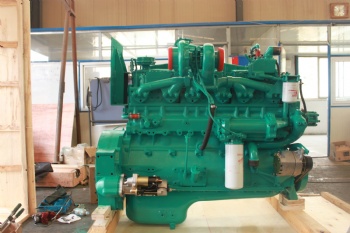

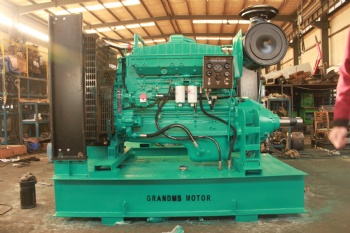

Cummins NTA855-G1 Generator Diesel Engine Assembly

Displacement

14L

Bore*Stroke(mm)

140 * 152

Rated Speed:

1500 rpm

Rated Power:

231 kW/310HP

Max. Torque/Speed:

1471/1617 N.m @ 1500 rpm

Aspiration Method:

Turbocharged/Aftercooled

Fuel Consumption:

 53 L/Kw.h

Packing Size(L*W*H):

1980 * 900 * 1600 mm

Gross Weight:

1500 KG

Certification

Tier III

Aspiration

Turbocharged

Fuel System

Cummins PT Pump, Direct Injection

Compression Radio

15:1

Electrical System (Starter Motor/Alternator)

24V/900A

Lowest Starting Temp. (without/without auxiliary system)

-12℃

Engine Cooling Fluid Volume

20.8 L

Cooling Method

Water Cooled

Rated Power/Rated Speed

231 kW/310HP@ 1500 rpm

Max. Torque/Speed

1471/1617 N.m @ 1500 rpm

Max. Power/Speed

254 kW/340HP@ 1500 rpm

Fuel Consumption

229g/Kw.h

Packing Size(L*W*H):

1980 * 900 * 1600 mm

Gross Weight:

1500 KG
