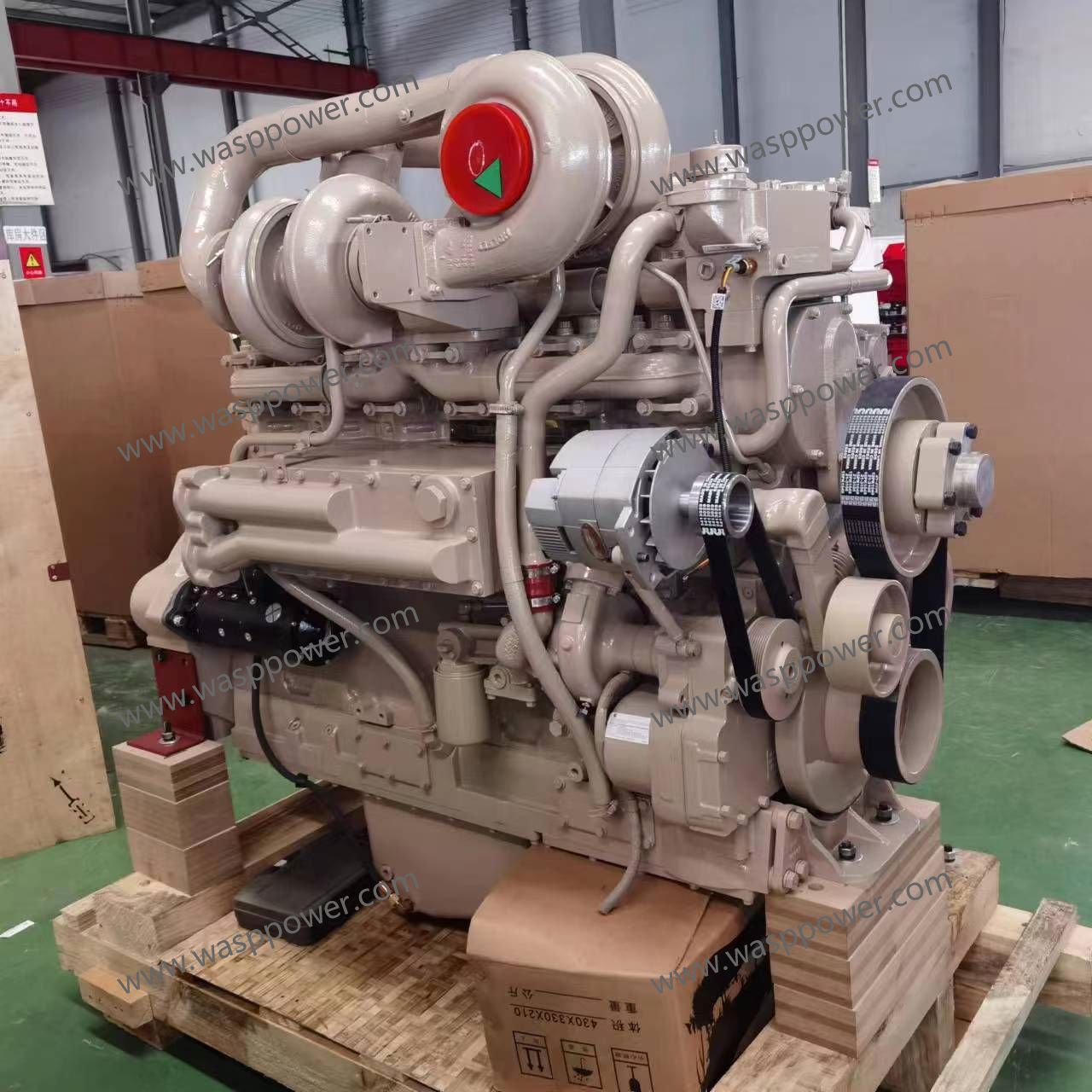

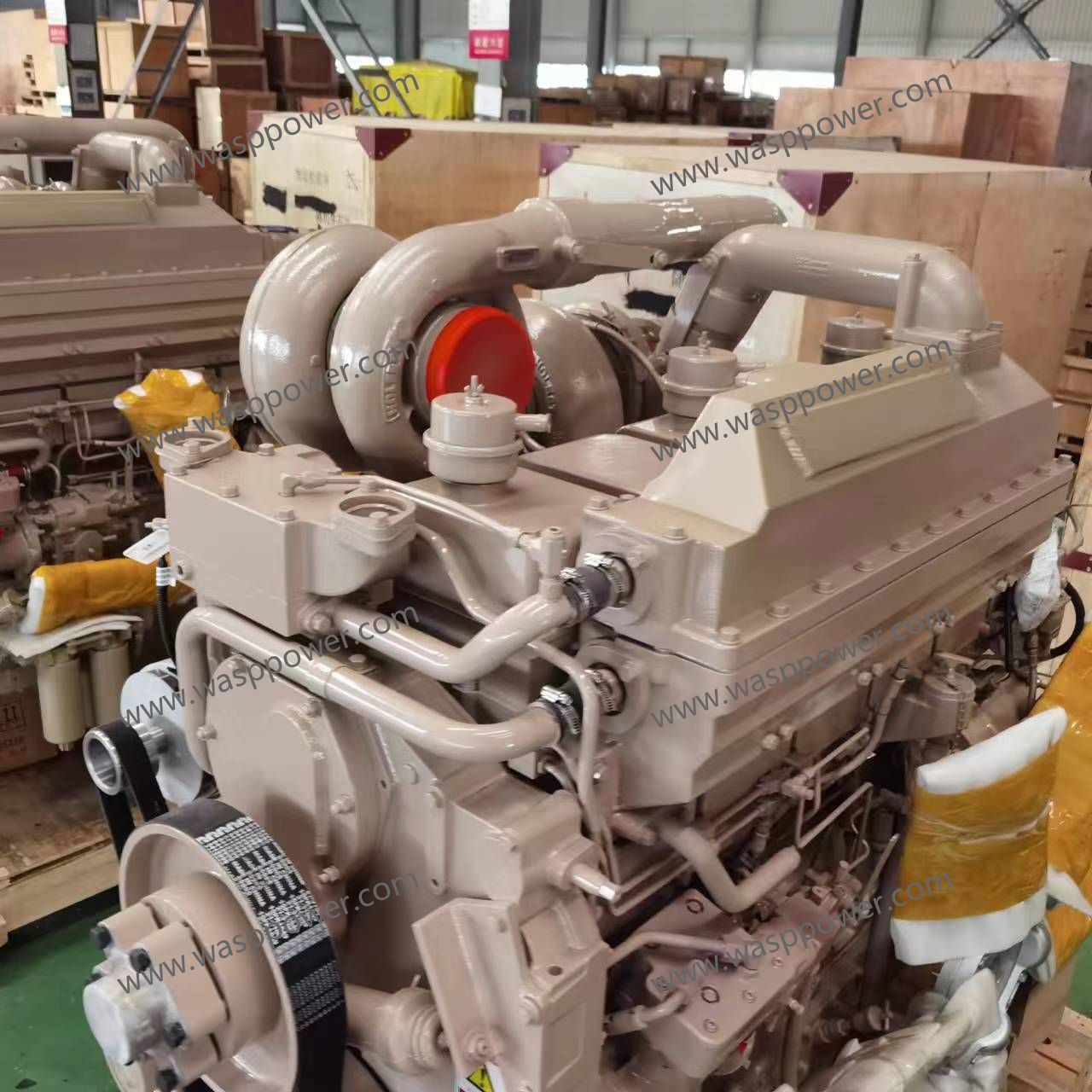

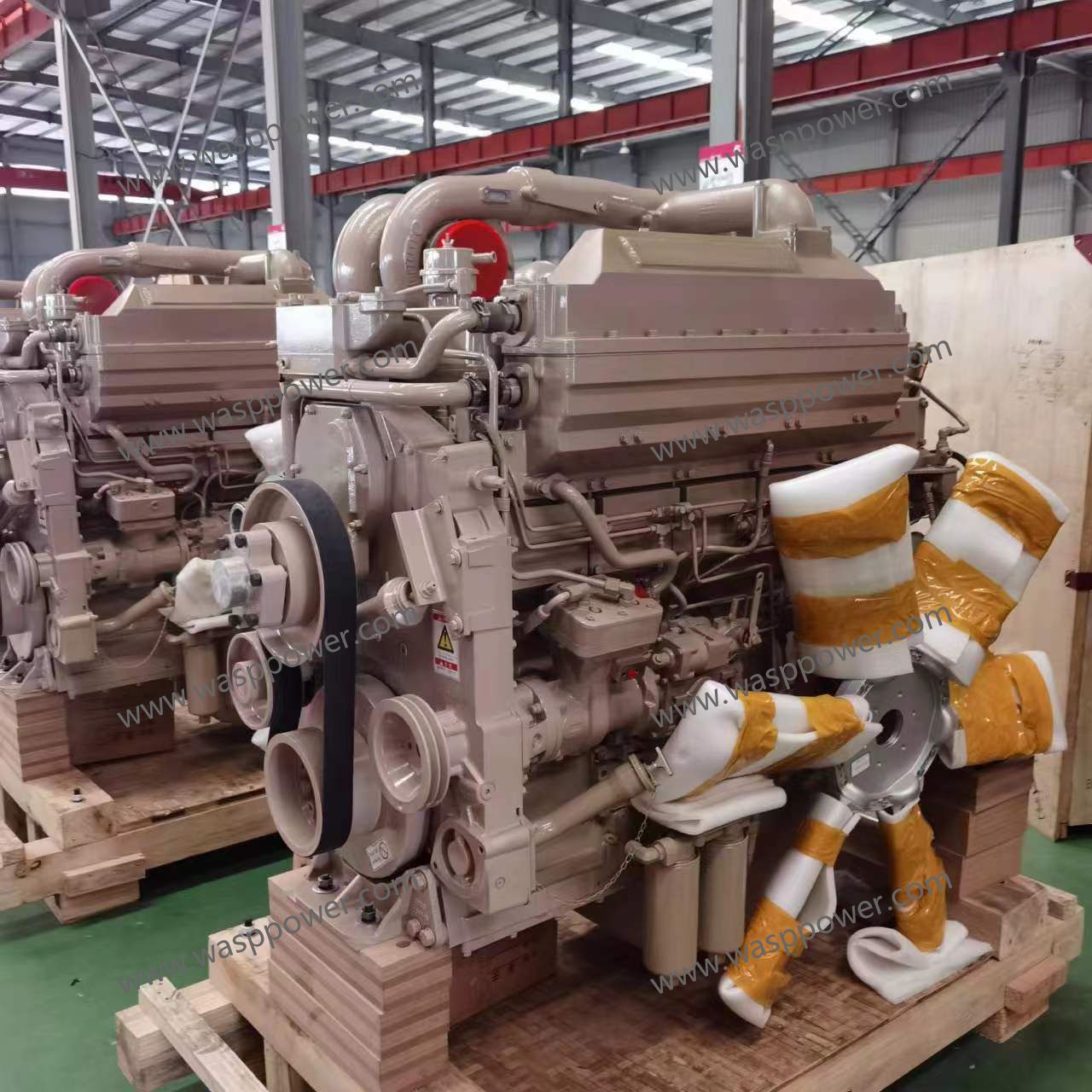

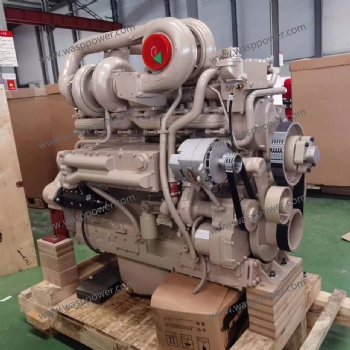

brand new cummins KTA19 CCEC K19-C700 diesel engine

Chongqing cummins which call CCEC,The products are suitable for heavy vehicles, engineering machinery, mining machinery, petroleum    machinery, rail machinery, port machinery, fixed and mobile diesel generator power stations, ship propulsion power units and auxiliary power units, pump power units and other power units. The main products meet the phase 2 and phase 3 emission requirements of non-highway diesel engines stipulated in Chinese national standards,cummins KTA19-C700 which designed and produced by Chongqing cummins,and Chongqing Cummins mainly produces M11, NT/QSN, K19/QSK19, K38/QSK38 and K50/QSK50 series diesel engines with a power range of 138-1865kW. TThe diesel engine is developed and designed according to the concept of advanced heavy-duty engine technology. It has high reliability, good durability, good fuel economy, small size, high power, large torque, large torque reserve, and common parts. Strong and other advantages.

  The main products of Chongqing Cummins diesel engines meet the requirements of the second and third stages of road diesel engines (Euro 2 and Euro 3) stipulated in Chinese national standards, American standards and European standards, as well as the first and second stages of diesel engines for non-public vehicles Stage alignment requirements (Tier 1 and Tier 2).

  The engine power coverage is 145-1343KW, and the annual production capacity is 15,000 units. The products are suitable for heavy-duty vehicles, large buses, construction machinery, mining machinery, petroleum machinery, rail machinery, port machinery, stationary and mobile diesel generator sets, shipyard propulsion power sets and auxiliary power sets, pump power sets and other power unit.

Breif introducation of KTA19-C700 diesel Engine

 Cummins  KTA19-C700 diesel Engine is inline type 6-cylinder, 19 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke.KTA19-C700 diesel Engine equipped with PT Fuel System, comes with turbocharger and Water-Air intercooler. The max power of  KTA19-C700 diesel Engine700 HP@ 2100 RPM, and the max torque of the engine at 1500 RPM. The Prime power of  KTA19-C700 diesel Engine is 700 HP (520 kW) at 2100 RPM, and the max torque of the engine at 1800 RPM in this mode is 2730N.m.To achieve different output, CUMMINS K19 series Industrial engine have three configurations which are turbocharged engine, turbocharge with water-air intercooler, turbocharge with air-air intercooler. In the detailed model name, code T means engine come with turbocharger, code single A means engine comes with water-air intercooler, and code double A means engine comes with air-air intercooler.

Advantages of cummins KTA19-C700 construction Engine

1.Advanced design and sophisticated manufacturing to adapt to various harsh working conditions! High-strength parts, strong ability to work under heavy loads.

2.Cylinder block and cylinder head adopt integrated design. The occurrence of engine water leakage and oil leakage is prevented, and the parts are about 40% less than other similar engines. The failure rate is greatly reduced.

3.Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.

4.The cylinder bore adopts a platform mesh honing design. The perfect geometric structure effectively prevents oil leakage, and the use of advanced technology such as new piston ring components and gasket crimping and molding reduces oil loss.

5.The five key systems of the electronically controlled engine are all developed by DCEC, and have been applied and verified in different fields around the world to ensure the excellent economy and reliability of the product.

6.By optimizing the control strategy and combining with the actual operating conditions of the equipment, the fuel economy can be further improved.

General specification of cummins KTA19-C700 diesel Engine
