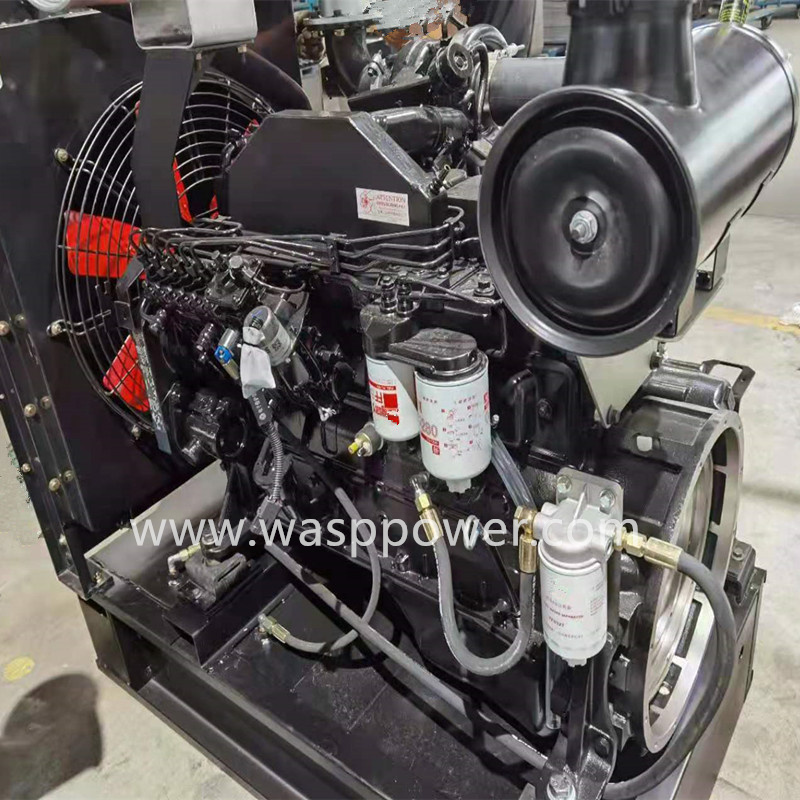

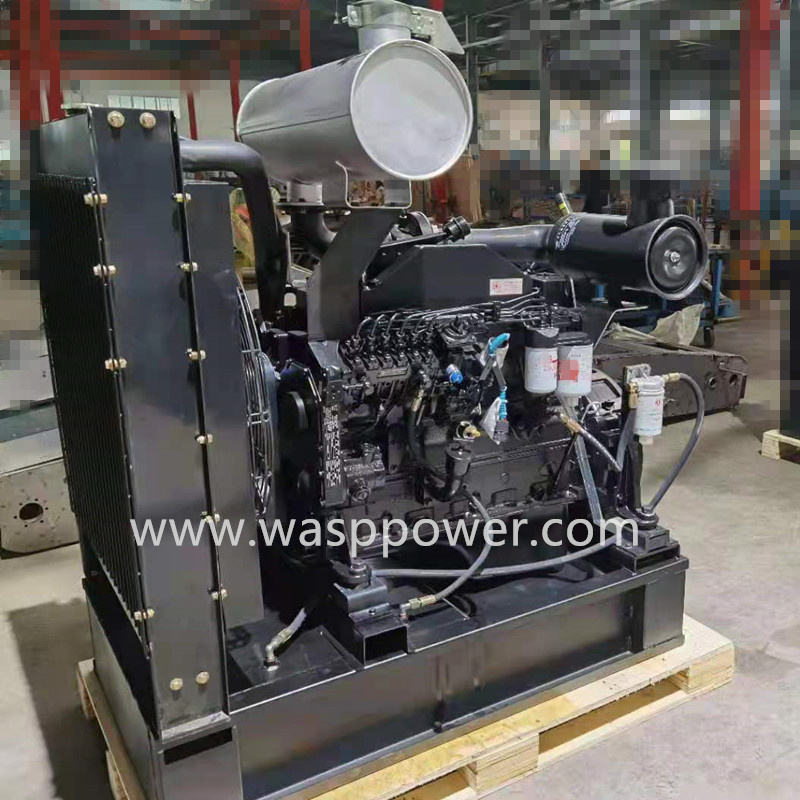

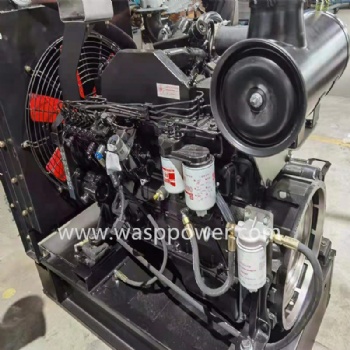

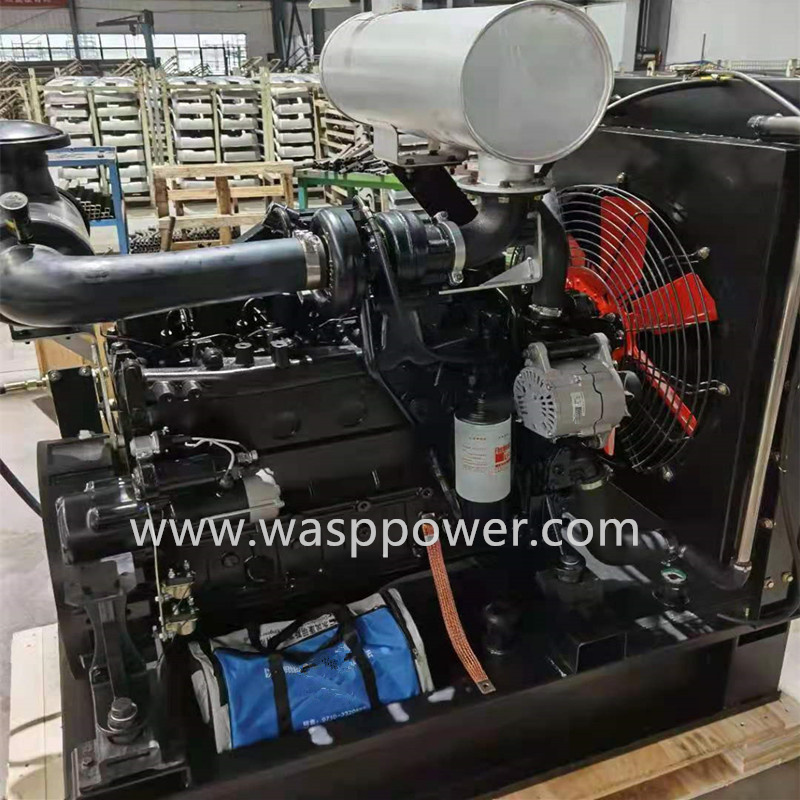

cummins 6BT5.9 170HP diesel engine with radiator

Engine Model:

6BT 6BT5.9 diesel engine

Rated Speed:

2200 rpm

Rated Power:

130kW(170 HP)

Max. Torque/Speed:

430 N.m@1500 rpm

Aspiration Method:

Turbocharged-Intercooled

Fuel Consumption:

224 g/kw.h

Packing Size(L*W*H):

1100*750*900 mm

Gross Weight:

500 Kg

General Information of Cummins 6BT5.9 170HP diesel engine with radiator

Engine Model

6BT 6BT5.9 diesel engine

Engine Type

6 Cylinders in Line

Displacement

5.9 L

Bore*Stroke(mm)

102 * 120

Engine Configuration Number

L563000CX03

Net Weight (with flywleel & alternator)

550 Kg

Overall Dimension (L*W*H)

1200mm*800mm*1000 mm

Technical Specification of Cummins 6BT5.9 170HP diesel engine with radiator

Certification

Euro III

Aspiration

Turbocharged-Intercooled

Fuel System

Direct Injection Pump

Compression Radio

16.6 : 1

Electrical System (Starter Motor/Alternator)

12V/24V

Lowest Starting Temp without auxiliary system

-12℃

Engine Cooling Fluid Volume

11.1 L
