KTA50-C1500 industry engine wholesale

Breif introducation of KTA50-C1600 diesel Engine

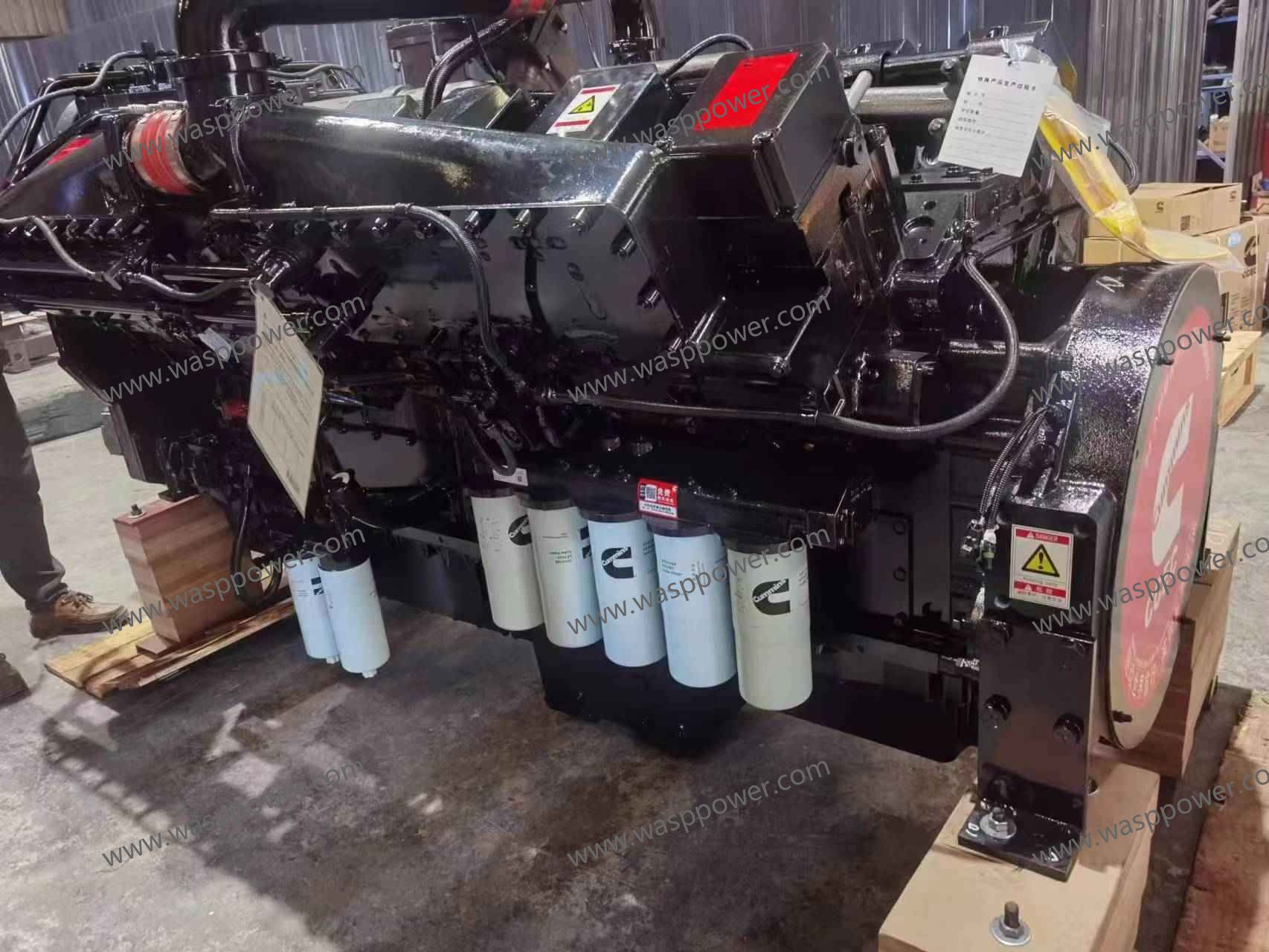

Cummins  KTA50-C1500 diesel Engine is V type16-cylinder, 50 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke.

KTA50-C1500 diesel Engine equipped with PT Fuel System, comes with turbocharger and Water-Air intercooler. The max power of  KTA50-C1500 diesel Engine1500 HP@ 2100 RPM, and the max torque of the engine at 1500 RPM. The Prime power of  KTA50-C1600 diesel Engine is 1500 HP at 2100 RPM, and the max torque of the engine at 1800 RPM in this mode is 5071 N.m(3740 lb.ft).

To achieve different output, CCEC K50 series Industrial engine have three configurations which are turbocharged engine, turbocharge with water-air intercooler, turbocharge with air-air intercooler. In the detailed model name, code T means engine come with turbocharger, code single A means engine comes with water-air intercooler, and code double A means engine comes with air-air intercooler.

Advantages of cummins KTA50-C1500 construction Engine

1.Advanced design and sophisticated manufacturing to adapt to various harsh working conditions! High-strength parts, strong ability to work under heavy loads.

2.Cylinder block and cylinder head adopt integrated design. The occurrence of engine water leakage and oil leakage is prevented, and the parts are about 40% less than other similar engines. The failure rate is greatly reduced.

3.Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.

4.The cylinder bore adopts a platform mesh honing design. The perfect geometric structure effectively prevents oil leakage, and the use of advanced technology such as new piston ring components and gasket crimping and molding reduces oil loss.

5.The five key systems of the electronically controlled engine are all developed by CCEC, and have been applied and verified in different fields around the world to ensure the excellent economy and reliability of the product.

6.By optimizing the control strategy and combining with the actual operating conditions of the equipment, the fuel economy can be further improved.

General specification of cummins KTA50-C1500 diesel Engine

More Models of CUMMINS KTA50 series industry engine

Please kindly noted that above data only for reference, it may change or updated so for ordering the exactly engine what you need please contact uus to confirm.You may also need the parts,please refer to cummins engine parts.
